7mm-08 Project #13

Recoil Pad

Just like the grip cap I like to use brass inserts when installing recoil pads. This does several things but most importantly in insures that the pad always lines up in the same place after installation and removal. It also creates a much stronger mount than putting wood screws into the end grain. Plus I think that it is a nice touch and worth the effort.

 Here is a brass machine screw getting the head cut off in the lathe

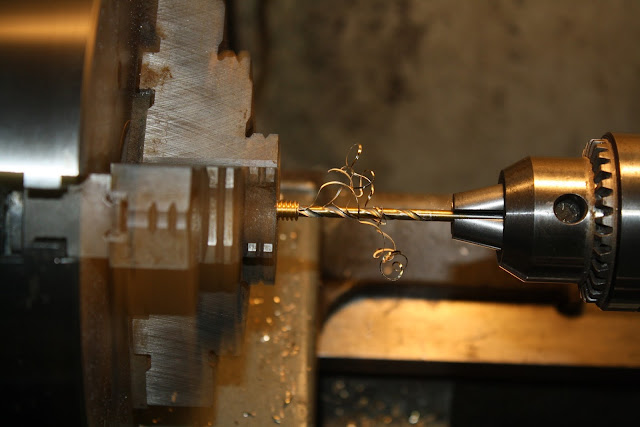

 Drilling a hole to accept threads for the mounting screws.

 Tapping the hole to accept the mounting screw.

 Here are all the components ready to mount on the stock. I have the wood screws that came with the pad shown for reference (they will not be used). I have also included the screwdriver bit that I use to install pads. This is a standard Phillips bit, but I have polished the outside so that it does not mar the recoil pad holes when tightening the screws. It is important to lubricate this bit with, soap, water, or wax when installing the pad so the screw holes don't get marred.

 Here I am laying out the cut line for the stock. At this point you can adjust the angle of the pad. I usually make mine 90 degrees to the bore line.

Here is the stock cut down ready to start installing the pad. Cutting the stock always makes me nervous!
